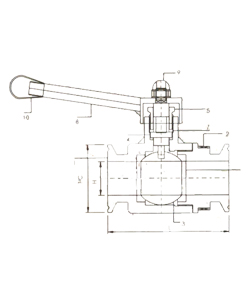

Material of Construction
| NO. | Description | Material | Qty. |
|---|---|---|---|
| 1 | Body | SS 304 / 316 L | 1 |
| 2 | End Piece | SS 304 / 316 L | 1 |
| 3 | Ball | SS 304 / 316 L | 1 |
| 4 | Spindle | SS 304 / 316 L | 1 |
| 5 | Gland Nut | SS 304 / 316 L | 1 |
| 6 | Seat | PTFE / Glassfild | 2 |
| 7 | Gland Ring | PTFE / Glassfild | 2 |
| 8 | Handle | SS 304 | 1 |
| 9 | Dome Nut | SS 304 | 1 |
| 10 | Knob | SS 304 | 1 |
Dimensions
| Size | F to F | H | T/C |
|---|---|---|---|
| 1/2" | 75 | 12.7 | 34.0 |
| 1/2" | 75 | 12.7 | 50.5 |
| 3/4" | 82 | 19.0 | 50.5 |
| 1" | 90 | 25.0 | 50.5 |
| 1.1/4" | 110 | 32.0 | 50.5 |
| 1.1/2" | 120 | 34.0 | 50.5 |
| 2" | 124 | 44.0 | 64.0 |
| 2.1/2" | 145 | 62.0 | 77.4 |
| 3" | 164 | 72.0 | 90.6 |
| 4" | 194 | 95.0 | 119.0 |
