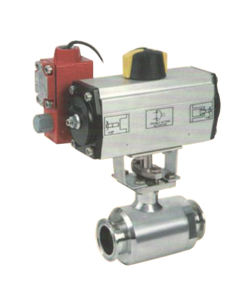

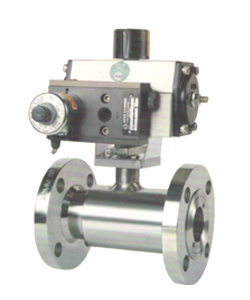

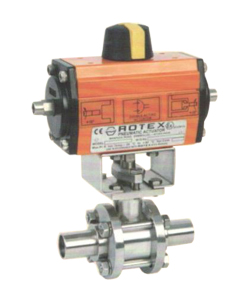

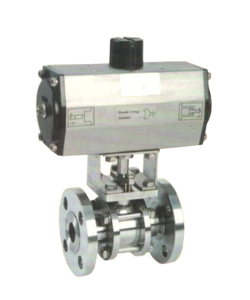

Ball Valve Automation System
Notes
- Torqua is calculated based on normal temperature, with virgin PTFE seat for 150 class.
- Torque Specified in this table is to be used as a guide for actuator selection. A Safety Factor of 1.3~ 1.5 is recommended for average services. 1.8~2 for abrasive media ( or ) slury and 2~2.5 for cryogenic services.
- 1.2~1.25 times extra to be considered for reinforced PTFE in place of before safety factor.
- Torque may very according to different medium, temp, and trim material.
Optional Accessories :
- Linit Switch Box
- Solenoid Valve
- Clutching & Declutching Gear Box ( Manual Override )
- Positioner
Dimensions
| Size(Inch) FB Ball Valve | 150 Class(10) | Double Acting Actuator | Single Acting Actuator |
|---|---|---|---|
| 1/2" | 3 | EC - 32 | EC - 40E |
| 3/4" | 5 | EC - 40 | EC - 50E |
| 1" | 7 | EC - 40 | EC - 50E |
| 1.1/4" | 12 | EC - 50 | EC - 63E |
| 1.1/2" | 15 | EC - 63 | EC - 80E |
| 2" | 26 | EC - 63 | EC - 90E |
| 2.1/2" | 35 | EC - 80 | EC - 100E |
| 3" | 50 | EC - 90 | EC - 100E |
| 4" | 80 | EC - 100 | EC - 125E |
| 6" | 170 | EC - 150 | ECF - 17SE |
- Bracket & Coupler Changes Extra
- Before Select Actuator please inform your application details.
