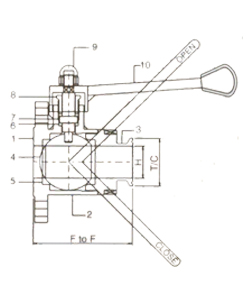

Material of Construction
| NO. | Description | Material | Qty. |
|---|---|---|---|
| 1 | Flange | 304 / 316 / 316 L | 1 |
| 2 | Body | 304 / 316 / 316 L | 1 |
| 3 | End Nut | 304 / 316 / 316 L | 1 |
| 4 | Ball | 304 / 316 / 316 L | 1 |
| 5 | Seat | PTFE / Glassfild | 2 |
| 6 | Gland Ring | PTFE / Glassfild | 2 |
| 7 | Spindle | 304 / 316 / 316 L | 1 |
| 8 | Gland Nut | 304 / 316 / 316 L | 1 |
| 9 | Dome Nut | 304 | 1 |
| 10 | Handle | 304 | 1 |
Dimensions
| One Side Flange | Second Side T/C | Hole | F to F |
|---|---|---|---|
| 1" | 50.5 | 25 | 78 |
| 1.1/2" | 50.5 | 34 | 104 |
| 2" | 50.5 | 34 | 105 |
| 2" | 64.0 | 44 | 112 |
| 2.1/2" | 64.0 | 44 | 114 |
| 2.1/2" | 77.4 | 62 | 130 |
| 3.1/2" | 90.6 | 72 | 149 |
| 4" | 119.0 | 95 | 193 |
