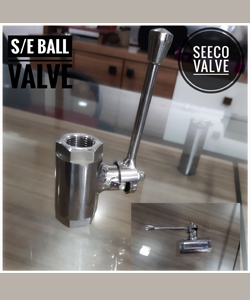

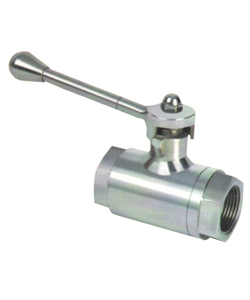

Screw End Ball Valve

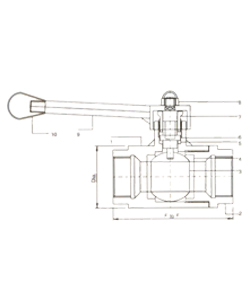

Material of Construction
| NO. | Description | Material | Qty. |
|---|---|---|---|
| 1 | Body | SS 304 / 316 / 316 L | 1 |
| 2 | End Piece | SS 304 / 316 / 316 L | 1 |
| 3 | Ball | SS 304 / 316 / 316 L | 1 |
| 4 | Seat | PTFE / Glassfild | 2 |
| 5 | Gland Ring | PTFE / Glassfild | 2 |
| 6 | Spindle | SS 304 / 316 / 316 L | 1 |
| 7 | Gland nut | SS 304 / 316 / 316 L | 1 |
| 8 | Dome Nut | SS 304 | 1 |
| 9 | Handle | SS 304 | 1 |
| 10 | Knob | SS 304 | 1 |
Dimensions
| Size | F to F | Dia. |
|---|---|---|
| 3/8" | 64 | 32 |
| 1/2" | 70 | 36 |
| 3/4" | 83 | 40 |
| 1" | 94 | 50 |
| 1.1/4" | 104 | 60 |
| 1.1/2" | 114 | 70 |
| 2" | 122 | 90 |
