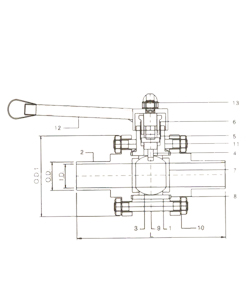

Material of Construction
| NO. | Description | Material | Qty. |
|---|---|---|---|
| 1 | Body | 304 / 316 / 316 L | 1 |
| 2 | End Piece | 304 / 316 / 316 L | 2 |
| 3 | Ball | 304 / 316 / 316 L | 1 |
| 4 | Spindle | 304 / 316 / 316 L | 2 |
| 5 | Gland Ring | PTFE / Glassfild | 2 |
| 6 | Gland Nut | 304 / 316 / 316 L | 1 |
| 7 | Seat | PTFE / Glassfild | 2 |
| 8 | "O" Ring | PTFE / Glassfild | 2 |
| 9 | Studs | 304 | 4 |
| 10 | Washers | 304 | 8 |
| 11 | Nuts | 304 | 8 |
| 12 | Handle | 304 | 1 |
| 13 | Dome Nut | 304 | 1 |
Dimensions
| Size | F to F(MM) | Dia. | 16 S.W.G | 14 S.W.G | ||
|---|---|---|---|---|---|---|
| OD | ID | OD | ID | |||
| 3/8" | 125 | 55 | 9.5 | 6.3 | 9.5 | 5.40 |
| 1/2" | 125 | 60 | 12.7 | 9.5 | 12.7 | 8.6 |
| 3/4" | 130 | 70 | 19.05 | 15.85 | 19.05 | 14.9 |
| 1" | 130 | 80 | 25.4 | 22.2 | 25.4 | 21.3 |
| 1.1/4" | 136 | 90 | 31.75 | 28.55 | 31.75 | 27.6 |
| 1.1/2" | 150 | 110 | 38.1 | 34.9 | 38.1 | 34.03 |
| 2" | 168 | 130 | 50.8 | 47.6 | 50.8 | 46.7 |
