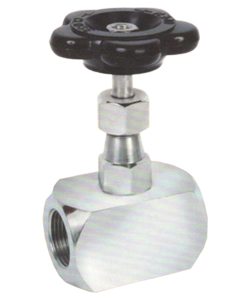

Round / Square Body Screw End Niddle Valve

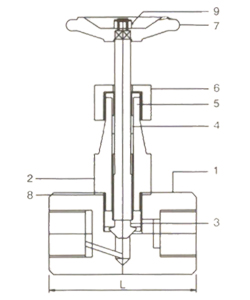

Material of Construction
| NO. | Description | Material | Qty. |
|---|---|---|---|
| 1 | Body | 304 / 316 / 316 L | 1 |
| 2 | Gland Nut | 304 / 316 / 316 L | 1 |
| 3 | Spindle | 304 / 316 / 316 L | 1 |
| 4 | Teflon | PTFE | 4 |
| 5 | Glan | 304 / 316 / 316 L | 1 |
| 6 | Spindle Nut | 304 / 316 / 316 L | 1 |
| 7 | Wheel | Backlite | 1 |
| 8 | Gasket | PRFE | 1 |
| 9 | Wheel Nut | 304 | 1 |
Dimensions
| Size | F to F Round Square | OD Round Sqaure | ||
|---|---|---|---|---|
| 1/4" | 52 | - | 28 | - |
| 3/8" | 52 | - | 28 | - |
| 1/2" | 58 | 65 | 32 | 35 |
| 3/4" | 65 | 65 | 40 | 40 |
| 1" | 70 | 75 | 45/50 | 48 |
