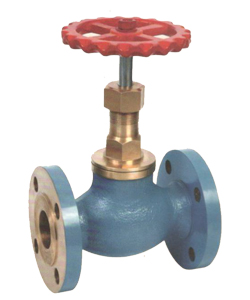

Flanged Type Gun Metal / S.S. 304 Globe Valve

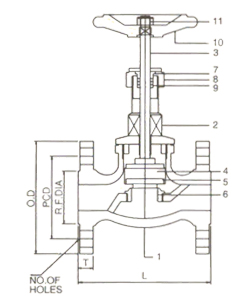

Material of Construction
| NO. | Description | Material | Qty. |
|---|---|---|---|
| 1 | Body | GM / 304 | 1 |
| 2 | Bonnet | GM / 304 | 1 |
| 3 | Spindle | 410 / 304 | 1 |
| 4 | Disc | 410 / 304 | 1 |
| 5 | Disc Ring | PTFE | 1 |
| 6 | Seat | PTFE / 304 | 1 |
| 7 | Gland | Gunmetal / 304 | 1 |
| 8 | Gland Nut | Gunmetal / 304 | 1 |
| 9 | Gland Ring | Gunmetal / PTFE | 3 |
| 10 | Wheel | Cast Iron | 1 |
| 11 | Wheel Nut | Ms | 1 |
Dimensions
| Size | F to F | OD | Thickness | RFD | PCD | Dia.of Bolt |
|---|---|---|---|---|---|---|
| 1" | 127 | 108.0 | 14.3 | 50.8 | 79.4 | 16 x 4 |
| 1.1/2" | 165 | 127.0 | 17.5 | 73.0 | 98.4 | 16 x 4 |
| 2" | 178 | 152.5 | 19.0 | 92.1 | 120.6 | 19 x 4 |
| 3" | 203 | 190.5 | 23.8 | 127.0 | 152.4 | 19 x 4 |
